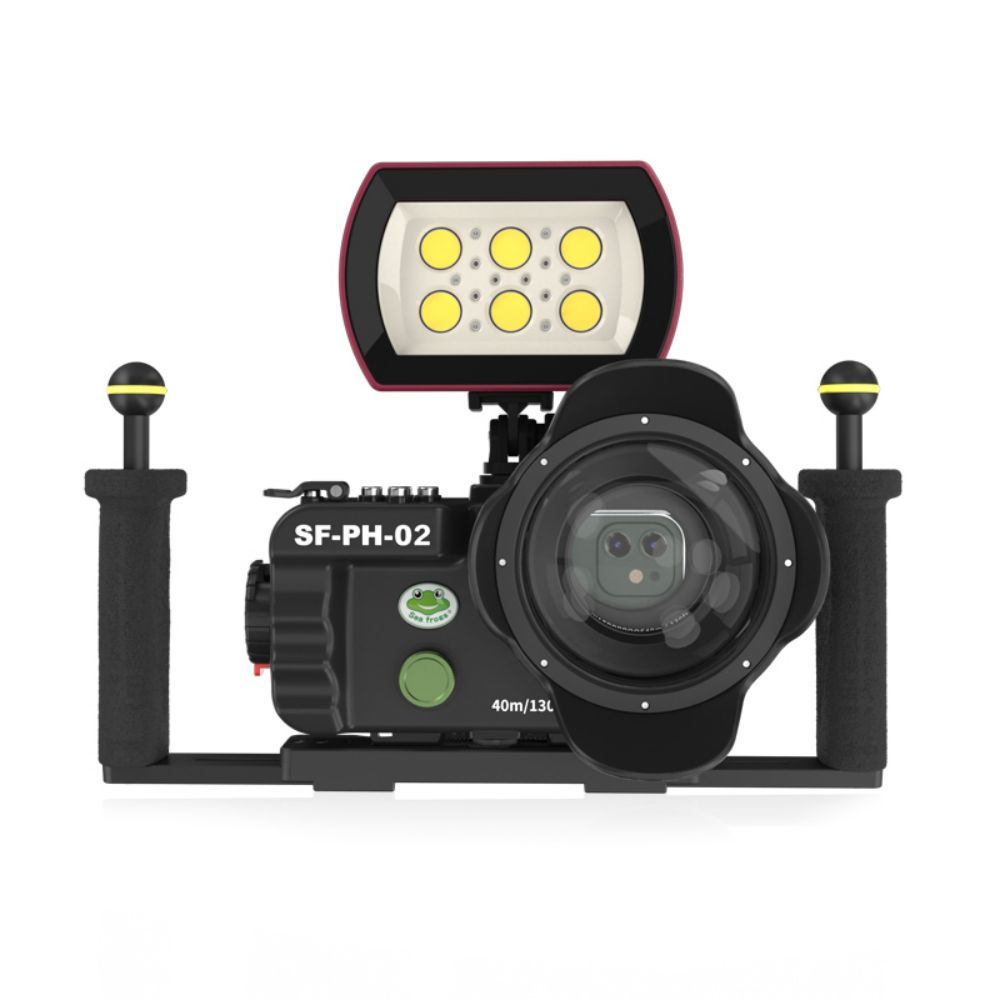

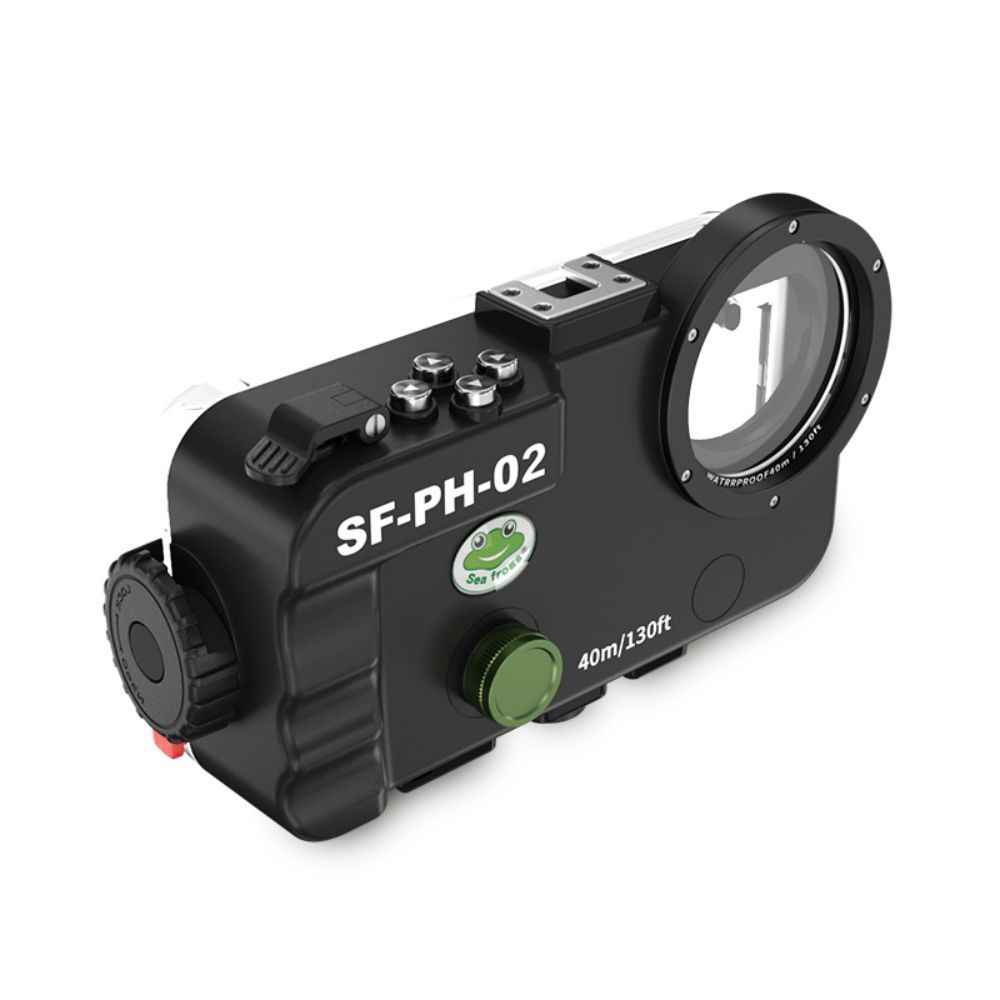

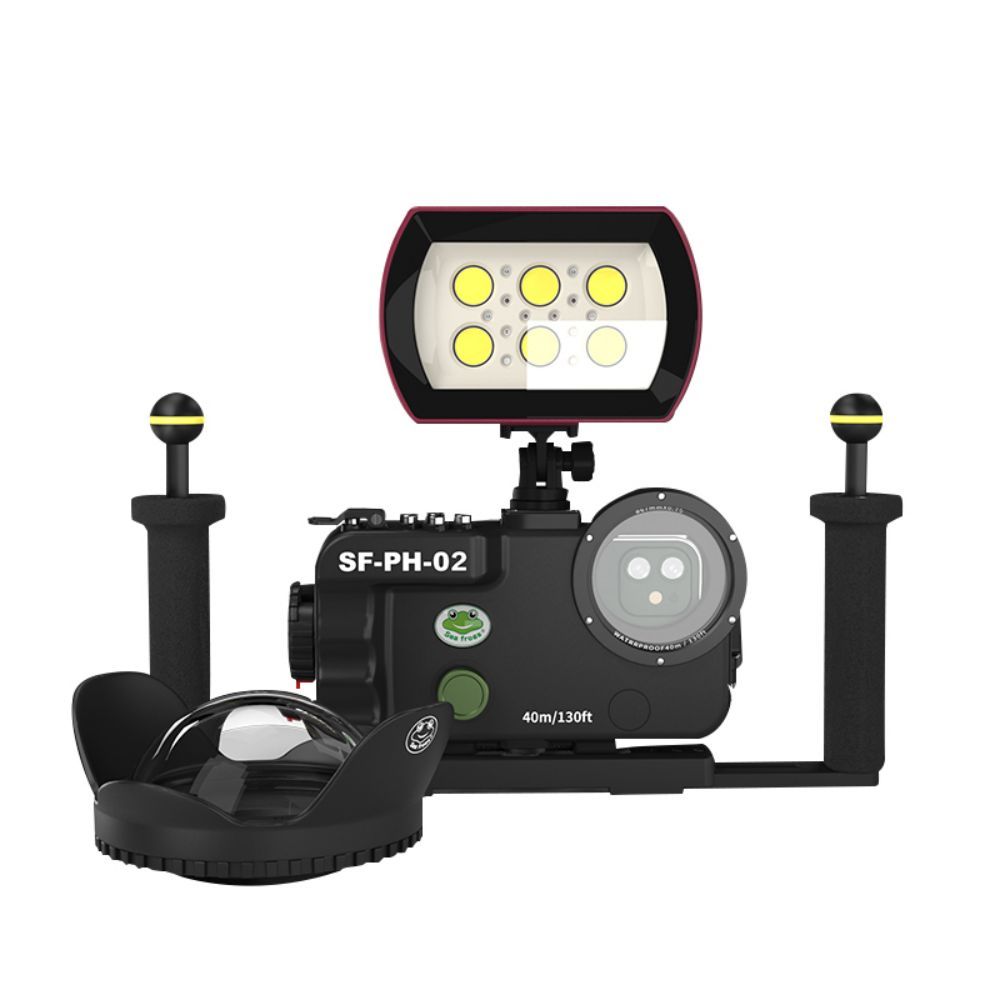

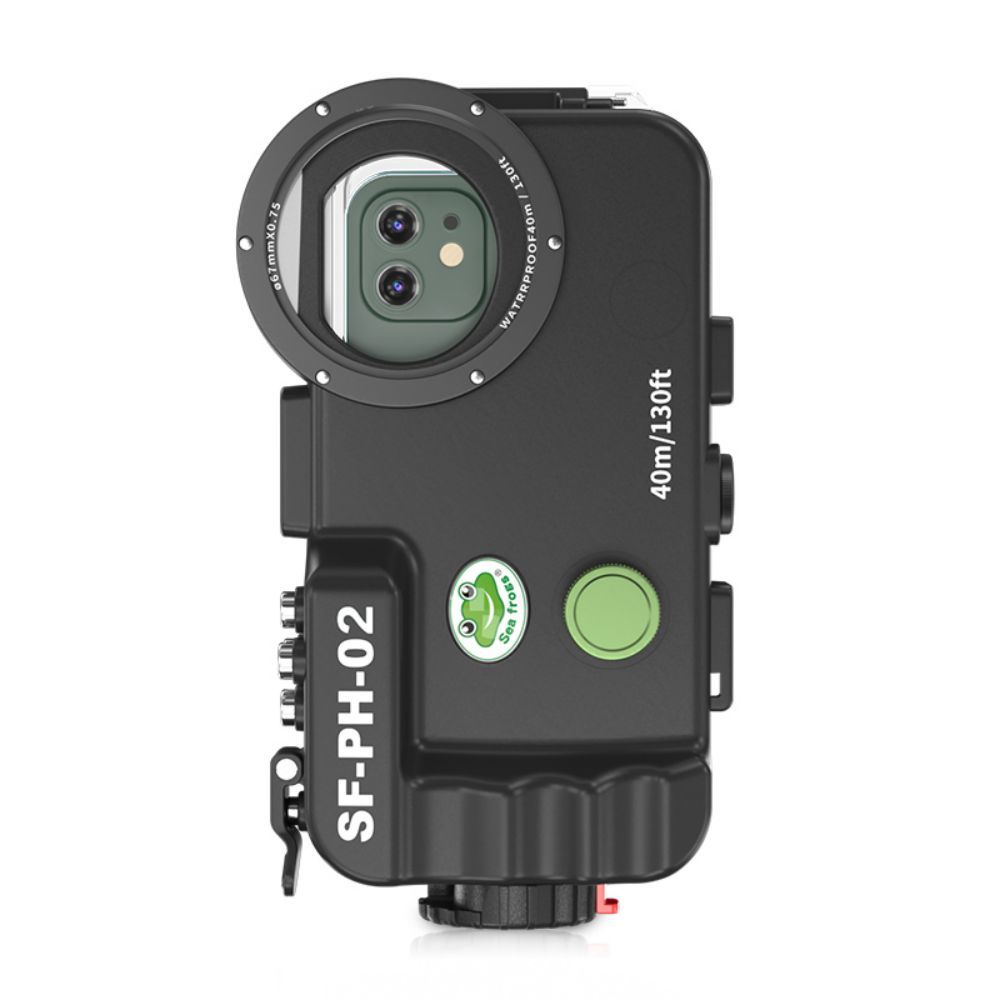

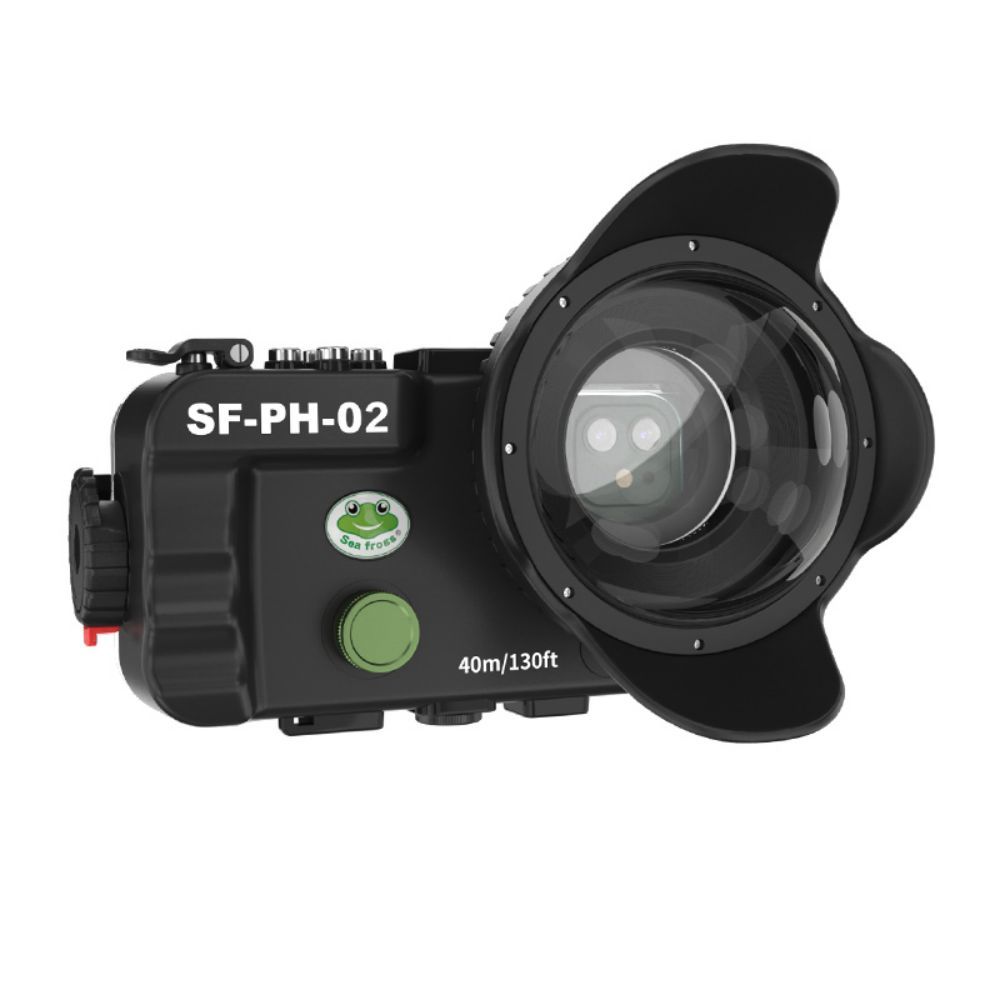

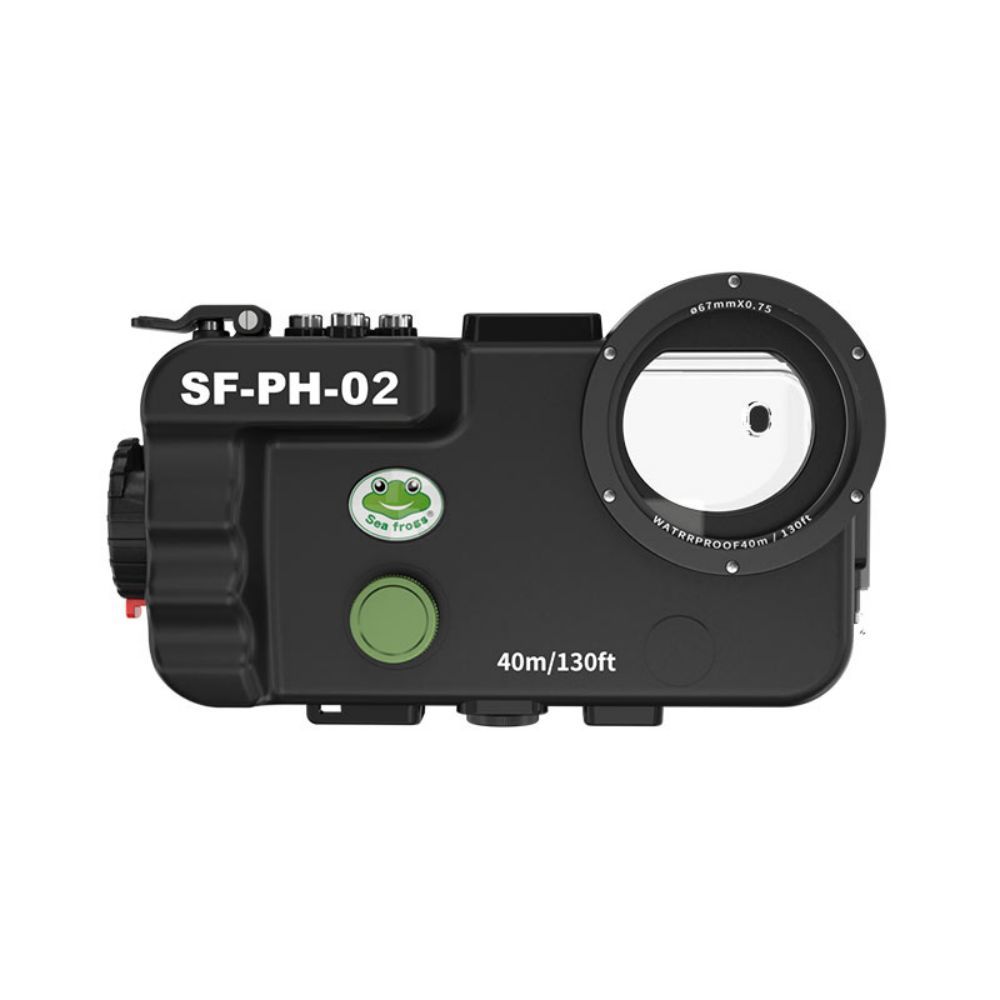

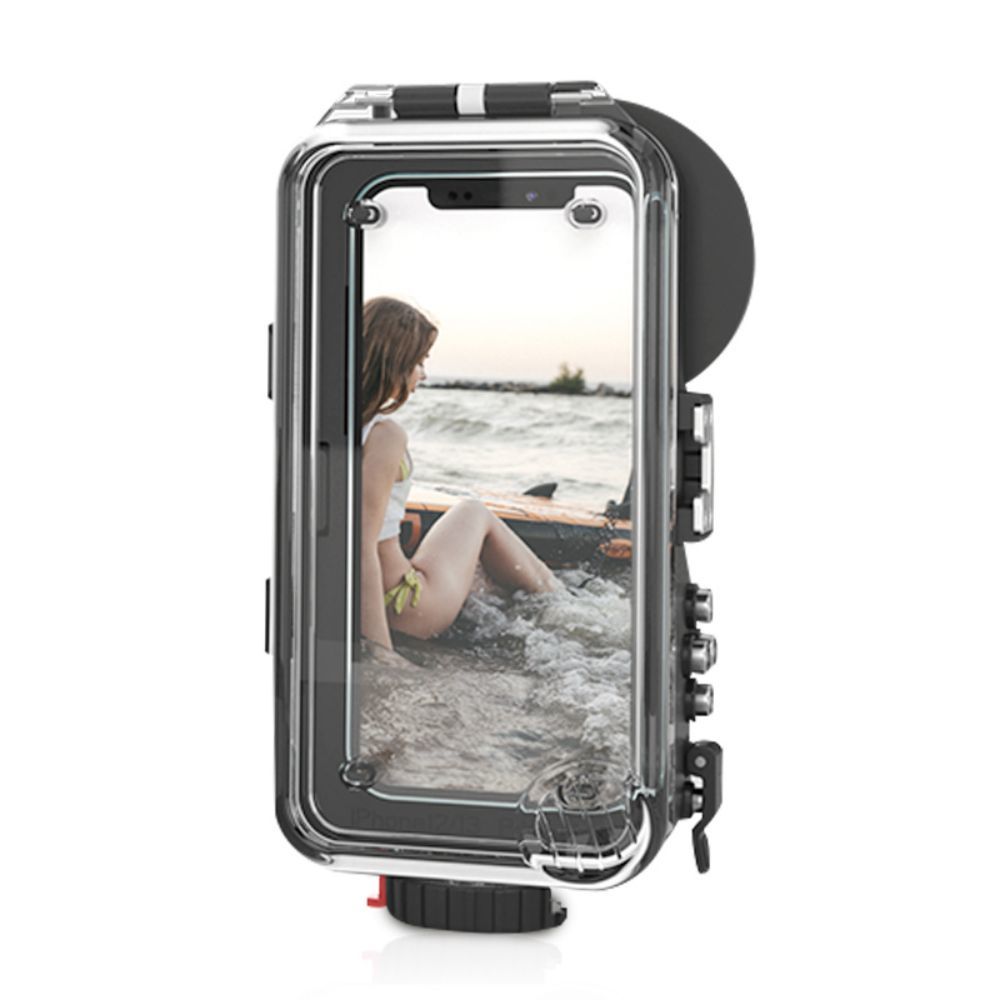

SF-PH-02 Polycarbonate Housings for Iphone/Huawei

SeaFrogs SF-PH-02 Universal Smartphone Underwater Housing – 40M

Take your smartphone underwater with confidence! The SeaFrogs SF-PH-02 is a professional waterproof smartphone housing designed for underwater photography and videography at depths of up to 40 metres / 130 feet.

Perfect for scuba diving, snorkelling, freediving, swimming, kayaking and other water activities.

Main Functions

• Protects your smartphone from water, sand, dust and minor impacts.
• Allows you to capture photos and record videos underwater.
• Provides access to camera controls through the housing’s external buttons.
• Supports additional accessories such as video lights, trays and handles.
• Allows the attachment of compatible M67 wide-angle and macro wet lenses.

Key Features

• Waterproof up to 40m / 130ft.
• IPX8 waterproof rating.
• Compatible with selected iPhone and Android smartphones.
• Uses your phone’s original camera application—no special app required.
• Directional control buttons and shutter button for easy underwater operation.
• Built-in vacuum system for checking the housing seal before diving.
• Optical-glass flat port for clear underwater images.
• M67 threaded lens mount for compatible wet lenses.
• Top cold-shoe mount for a video light or other accessories.
• Standard 1/4-inch mounting holes for a tray, handle or tripod.
• Secure O-ring sealing system to reduce the risk of leakage.
• Powered by 2 AAA batteries for the electronic control system.

Specifications

• Brand: SeaFrogs
• Model: SF-PH-02
• Maximum depth: 40m / 130ft
• Operating temperature: 0°C–40°C
• Supported systems: iOS and Android
• Maximum smartphone size: Approximately 175 × 87 × 10mm
• Lens thread: M67
• Power supply: 2 × AAA batteries

Important Notice

Please check your smartphone’s dimensions and system compatibility before ordering. Remove the phone case before placing the phone inside the housing. Perform a vacuum test and an empty-housing water test before first use.

Always ensure the O-ring is clean, properly positioned and lightly lubricated with silicone grease before every dive.
